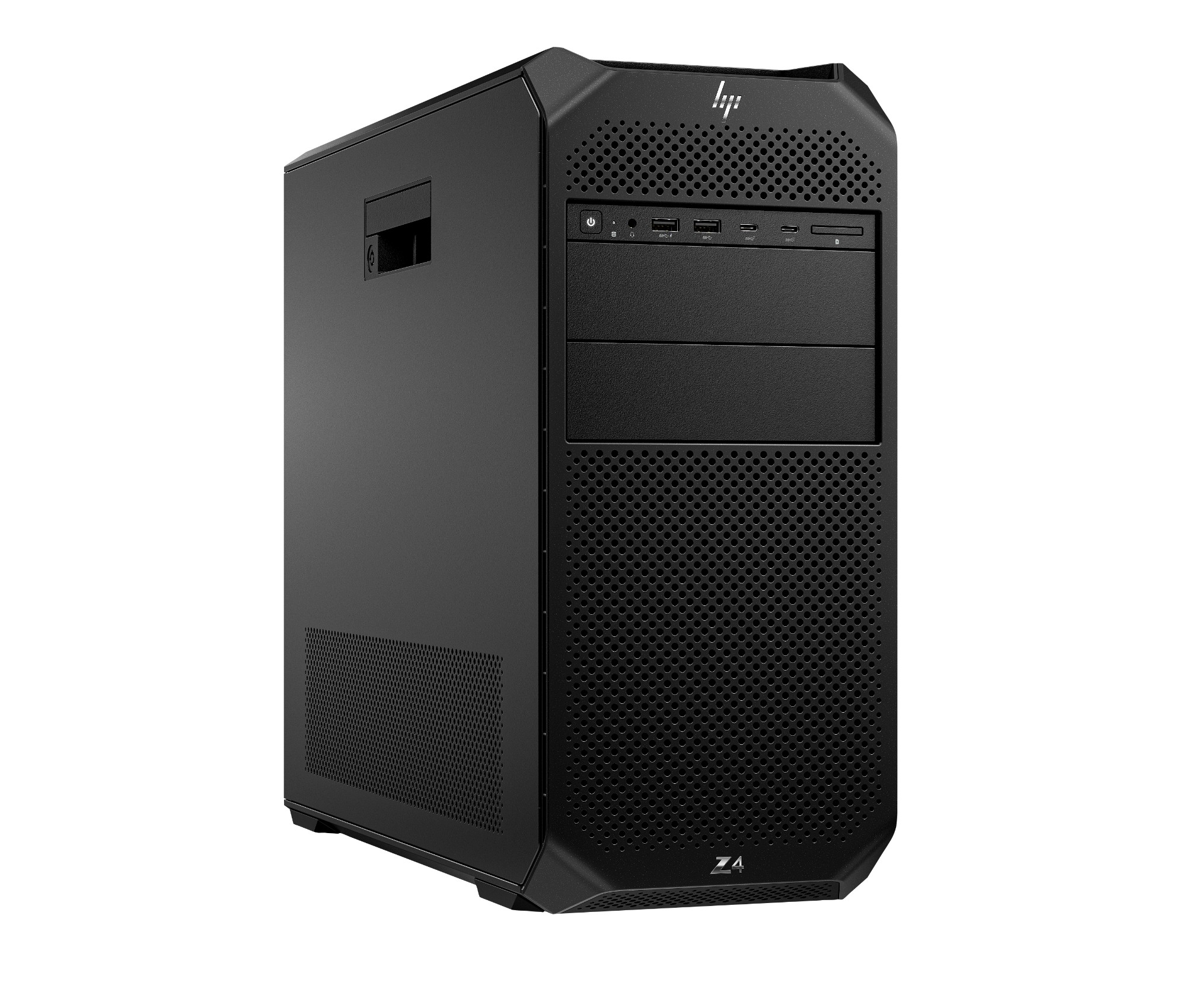

HP Z4 G5 Intel Xeon W W5-2565X 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Tower Workstation AI Workstation Black
£3,775.83 ex. VAT
Out of stock
Z4 G5 Workstation PC Wolf Pro Security Edition, Windows 11 Pro, Intel Xeon w5, 32GB RAM, 1TB SSD
Product Information
Power-up to next level pro performance
This high performance desktop workstation does it all. Tackle advanced workflows—from rendering and simulation to advanced video editing and massive dataset preparation. The Z4 AI workstation accelerates workflows across a wide range of professional apps and provides room to expand as work evolves.
| Processor | |
|---|---|
| Processor cache type | Smart Cache |
| Processor cache | 37.5 MB |
| Processor frequency | 3.2 GHz |
| Processor model | W5-2565X |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.8 GHz |
| Processor threads | 36 |
| Processor cores | 18 |
| Processor family | Intel Xeon W |
| Performance cores | 18 |
| Efficient cores | 0 |
| Processor base power | 240 W |
| Maximum turbo power | 288 W |
| Memory | |
| ECC | Yes |
| Memory layout (slots x size) | 2 x 16 GB |
| Internal memory | 32 GB |
| Maximum internal memory | 512 GB |
| Memory slots | 8x DIMM |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total storage capacity | 1 TB |
| SSD memory type | TLC |
| SSD form factor | M.2 |
| Total SSDs capacity | 1 TB |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Not available |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Line-out | Yes |
| Line-in | Yes |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2×2 Type-C ports quantity | 2 |
| Expansion slots | |
| PCI Express x4 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | Tower |
| Number of 3.5″ bays | 4 |
| Cable lock slot | Yes |
| Motherboard chipset | Intel W790 |
| Sustainable technologies and materials | Low Halogen; 40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; External power supply 90% efficiency; Plastic cushion inserts contain 80% recycled content; Ocean-bound plastic in system fan; 10% post-industrial recycled metal; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable |
| Sustainability compliance | Yes |
| Sustainability certificates | TCO |
| HP GTIN (EAN/UPC) | 198990829777 |
| Design | |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Tower |
| Number of 3.5″ bays | 4 |
| Cable lock slot | Yes |
| Introduction year | 2025 |
| Performance | |
| Audio chip | Realtek ALC3205-CG |
| Market positioning | Performance |
| Password protection | Yes |
| Password protection type | BIOS, Power on, User |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Motherboard chipset | Intel W790 |
| Harmonized System (HS) code | 8471500000 |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Bundled software | HP Wolf Pro Security Edition |
| Pre-installed software | HP Performance Advisor; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Data Science Stack; HP Services Scan |
| Operating system installed | Windows 11 Pro |
| Brand-specific features | |
| HP Support Assistant | Yes |
| HP Security tools | Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives |
| HP Management tools | HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support |
| HP Software provided | HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Data Science Stack |
| HP segment | Business |
| HP Artificial Intelligence | AI Workstation |
| HP GTIN (EAN/UPC) | 198990829777 |
| Power | |
| Power supply | 1125 W |
| Certificates | |
| Low halogen | Yes |
| Sustainability | |
| Sustainable technologies and materials | Low Halogen; 40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; External power supply 90% efficiency; Plastic cushion inserts contain 80% recycled content; Ocean-bound plastic in system fan; 10% post-industrial recycled metal; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable |
| Sustainability compliance | Yes |
| Sustainability certificates | TCO |
| Weight & dimensions | |
| Package width | 314 mm |
| Package depth | 572 mm |
| Package height | 563 mm |
| Width | 168.9 mm |
| Depth | 444.5 mm |
| Height | 386.1 mm |
| Package weight | 14.3 kg |
| Weight | 10.5 kg |
| Packaging data | |
| Package width | 314 mm |
| Package depth | 572 mm |
| Package height | 563 mm |
| Package weight | 14.3 kg |
| Packaging content | |
| Bundled software | HP Wolf Pro Security Edition |
| Mouse included | Yes |
| Display included | No |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
| Display | |
| Display included | No |
| Logistics data | |
| Harmonized System (HS) code | 8471500000 |
| Other features | |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | No |
| Processor manufacturer | Intel |
| Keyboard type | USB |
| Harmonized System (HS) code | 8471500000 |
| Manufacturer warranty | 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. |
